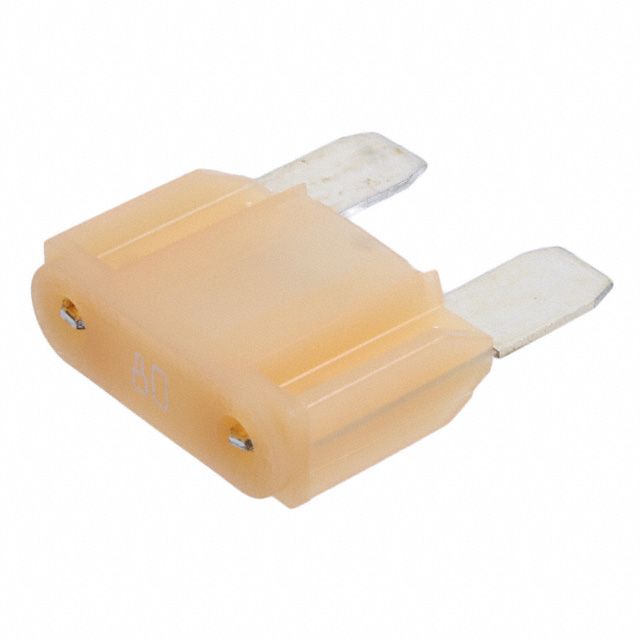

0299080.L
LITTELFUSE INC
Product Details
Stock Information
Documentation
View DataSheetBuy More, Pay Less
Unlock lower prices with higher volume purchases.
| Break Qty | Price (INR) |
|---|---|
| 1 | ₹ 286.58 |
| 5 | ₹ 264.33 |
| 10 | ₹ 254.54 |
| 50 | ₹ 225.17 |
| 100 | ₹ 176.22 |
| 250 | ₹ 169.1 |
| 500 | ₹ 163.76 |
| 1000 | ₹ 156.64 |
| 2500 | ₹ 152.19 |
Total Price
₹286.58
₹286.58 per unit
Specifications
Import Duty Classification
-
Product Series Line
MAXI®
I C Encapsulation Type
Bulk
Availability Status
Active
Attachment Mounting Style
Requires Holder
Overcurrent Protection Style
Automotive
Ampere Capacity Rating
80 A
A C Voltage Max
-
D C Voltage Max
32 V
Activation Speed ms
Slow Blow
Component Housing Style
Blade, Max
Interrupt Rating at Voltage
1kA
Thermal Melting Integral
8800.0
Certification Body
DIN, ISO, SAE
Ambient Temp Range
-40°C ~ 125°C
Visual Hue
Clear
Package Size Specs
1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
Description
Complies with the criteria of entities acknowledged as DIN, ISO, SAE. Has a breaking capacity of 1kA at its designated voltage. Offered in a shade referred to as Clear to improve system aesthetics. Sets the current rating in amps to 80 A. Supports Automotive fuse specifications to meet safety requirements. Melting I²t 8800.0 for fuse or thermal protection. Mounting configuration Requires Holder for structural stability. Ambient temperature -40°C ~ 125°C for thermal performance. Type of enclosure Bulk for safeguarding or transporting components. Style of enclosure/case Blade, Max that offers mechanical and thermal protection. Product state Active for availability and lifecycle. Duration of response Slow Blow for rapid operation or detection. Classification series for product or component MAXI®. Size specifications 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) for mechanical or electrical components. Measurement of dimensions 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) for component specifications. The highest DC voltage specification 32 V for components.
